Harmony

Nov 28, 2022

ESA

|

Gravity, Magnetic and Geodynamic measurements

|

Sea ice cover, edge and thickness

|

Snow & Ice

|

Expected to launch in December 2029, Harmony is a constellation of two SAR (Synthetic Aperture Radar) equipped satellites operated by the European Space Agency (ESA) as an Earth Explorer mission, which will run in tandem with a Sentinel-1 satellite. Until their design life of five years comes to an end, they will monitor changes in the Earth’s surface, as well as monitor ocean surface conditions such as wind, currents, and temperature.

Quick facts

Overview

Mission typeEO
AgencyESA
Mission statusApproved
Launch date2029
End of life date2034
Measurement domainSnow & Ice, Gravity and Magnetic Fields
Measurement categoryGravity, Magnetic and Geodynamic measurements, Sea ice cover, edge and thickness
InstrumentsMultiview Thermal-Infared, Passive Synthetic Aperture Radar
Instrument typeImaging microwave radars, Imaging multi-spectral radiometers (vis/IR)
CEOS EO HandbookSee Harmony summary

Harmony is envisaged to address key scientific questions related to ocean, ice and land dynamics (Image credit: ESA)




Summary

Mission Capabilities

Each Harmony satellite will carry two instruments on board. The primary instrument is a receive-only C-band SAR (Synthetic Aperture Radar) that will detect C-band radio waves emitted from the SAR of a Sentinel-1 satellite. This data will be used to measure small changes in the Earth’s surface that occur during certain events such as earthquakes and volcanoes, with the intent of minimising risk. Small changes in the Earth’s surface also occur due to glacial flow, which will be studied to better understand the relationship between ice mass loss and the rising sea levels. The SAR will also monitor ocean surface conditions such as wind and currents to improve our knowledge and models of the ocean and thus improve our forecasting ability.

The secondary instrument is a multibeam thermal-infrared instrument. When clouds are present, it will measure vertically-resolved cloud movements. When clouds are not present, the instrument will measure the ocean surface temperature to complement the data collected by the SAR.

Performance Specifications

The combined use of both SARs will allow the ocean surface currents to be measured with an accuracy of ±0.2 m/s.

The Harmony satellites will undertake the same orbit as the Sentinel-1 satellites. The orbit is sun-synchronous with an altitude of 693 km and an inclination of 98.19°. It has a period of 98.74 minutes and a repeat cycle of 12 days.

Space and Hardware Components

The Harmony satellites can orbit in two different formations, stereo and cross-track. In stereo formation, Harmony A will be 350 km behind the Sentinel-1 satellite, and Harmony B will be 350 km in front of the Sentinel-1 satellite. In cross-track formation, the Harmony satellites are orbiting next to each other (200 - 500 m apart), and 350 km behind the Sentinel-1 satellite. The choice of formation will be dependent on what is being observed.

Overview

Harmony is a constellation of two SAR (Synthetic Aperture Radar) equipped satellites operated by the European Space Agency (ESA) as an Earth Explorer mission, which will run in tandem with Sentinel-1.

The Earth Explorer missions are research missions that are applying new observation techniques to respond to the needs of the scientific community in their quest to understand different aspects of the Earth system and the interactions that bind the system as a whole. Advancing science and technology, they address questions that have a direct bearing on societal issues such as the availability of food, water, energy and resources, public health and climate change.

The Harmony concept comprises two identical satellites that would fly in convoy with a Copernicus Sentinel-1 satellite. Each Harmony satellite is being designed to carry a receive-only synthetic aperture radar as its main instrument. Working together with Sentinel-1’s radar, Harmony would provide data to measure small shifts in the shape of the land surface such as those related to earthquakes and volcanic activity, thereby contributing to risk monitoring. It would also allow for the study of 3D deformation and flow dynamics of glaciers at the rapidly changing marginal zones of the ice sheets for a better understanding of sea-level rise.

Both Harmony satellites would also carry a multibeam thermal-infrared instrument, which in the presence of clouds will enable the measurement of height-resolved cloud movements. In absence of clouds, this multibeam thermal-infrared instrument will measure sea-surface temperature differences.

Harmony would also be the first mission to provide data to improve our understanding of interactions between the air and the ocean surface by providing simultaneous measurements of wind, waves, and currents, that together with measurements of sea surface thermal differences and cloud motion will enable an unprecedented view of the marine atmospheric boundary layer.

Over land, Harmony would provide data to measure small shifts in the shape of the land surface, such as those resulting from earthquakes and volcanic activity, and therefore it will contribute to risk monitoring. It would also provide new information to study 3D deformation and flow dynamics of glaciers at the rapidly changing marginal zones of the ice sheets for a better understanding of the impact of ice mass loss on sea-level rise.

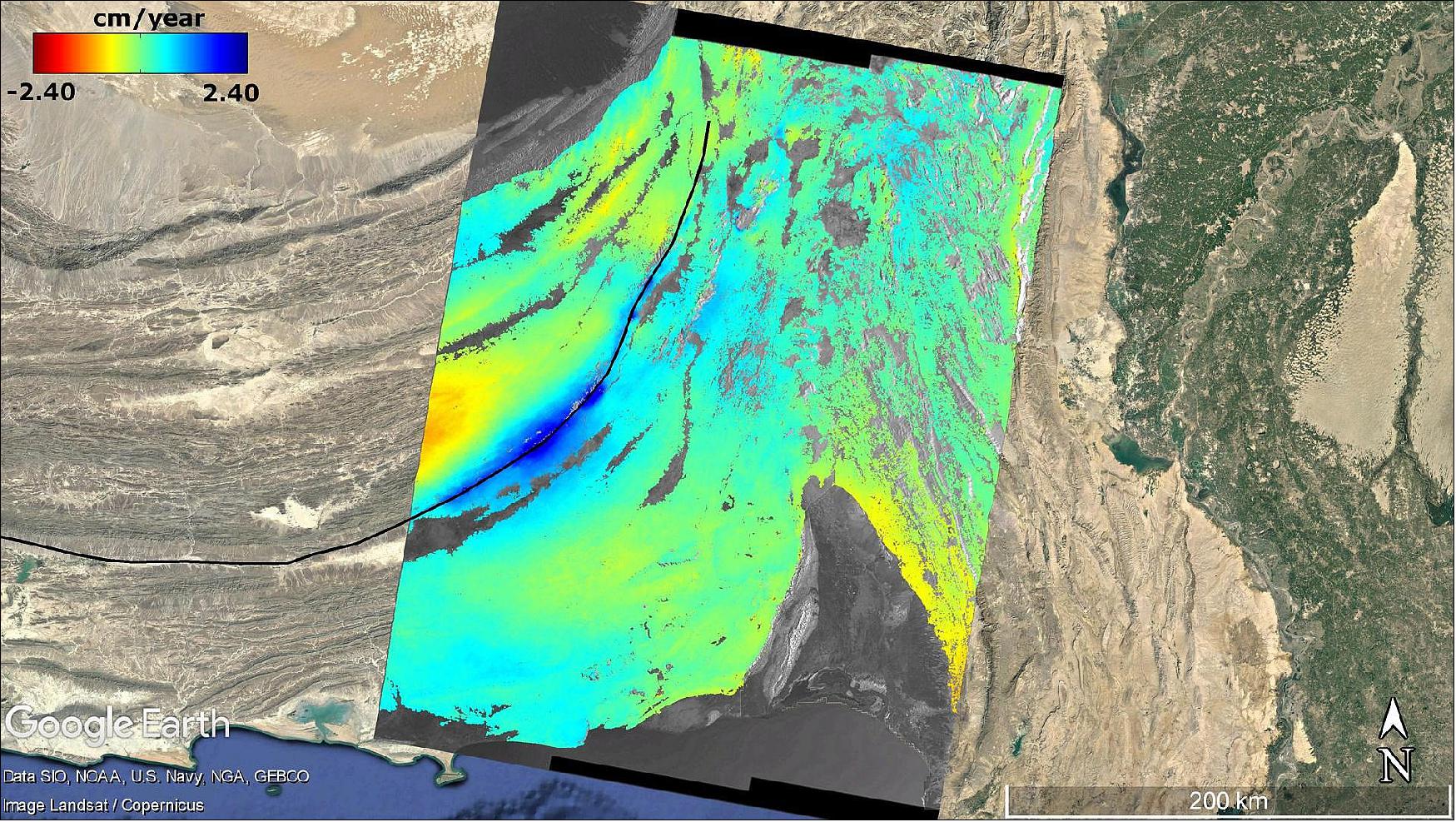

Figure 1: Harmony is envisaged to address key scientific questions related to ocean, ice and land dynamics (Image credit: ESA)


In essence, Harmony addresses key science questions in several domains. Its observation concept enables unique measurements over timescales ranging from tens of milliseconds (to measure ocean currents) to years (to measure solid Earth surface motion).



Spacecraft

In stereo formation, the Harmony satellites will be positioned at 350 km in front of and behind the Sentinel-1 satellite. In close flight formation, both Harmony satellites will fly relatively close to one another, approximately 200 - 500 metres apart, and at a distance of 350 km from the Sentinel-1 satellite.

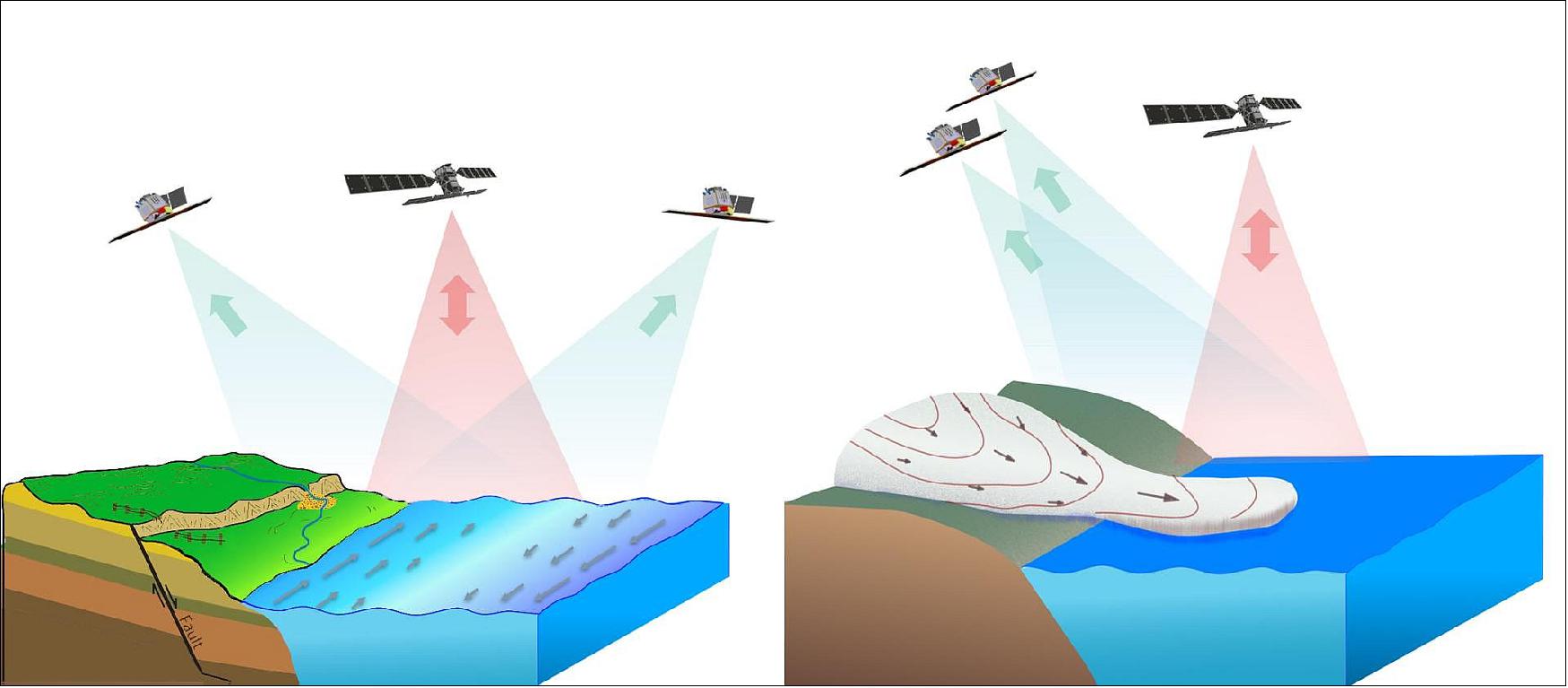

Figure 2: Representation of the stereo (left) and cross-track (right) formations for Harmony (Image credit: Harmony Mission Advisory Group)



Launch

The first Harmony satellite is expected to launch in December 2029.

Orbit: The Harmony satellites will undertake the same orbit as Sentinel-1. The orbit is sun-synchronous with an altitude of 693 km and an inclination of 98.19°. It has a period of 98.74 minutes and a repeat cycle of 12 days.

Mission Status

• November 2022: The Harmony candidate mission concept was formally selected as the tenth Earth Explorer, the mission is part of ESA’s Earth Observation FutureEO programme proposal at the Council at Ministerial Level, CM22. 4) 5)

• March 31, 2022: The Harmony candidate mission concept is currently undergoing the last stages of preparation prior to being put forward as the Earth Explorer 10 flagship mission. A User Consultation Meeting will be held on 5 July 2022, after which a decision on the implementation of the mission is expected in September.

• March 31, 2022: An important milestone in the preparation of ESA’s tenth Earth Explorer candidate satellite mission, Harmony, has been reached thanks to two aircraft flying in tight formation over the Dutch Wadden Islands collecting key data on sea state and currents. The main purpose of this tricky airborne experiment is to mimic the geometry at which the Harmony satellites will measure various aspects of ocean dynamics to understand how air and the ocean surface interact, which, in turn, will improve weather prediction and climate models. 3)

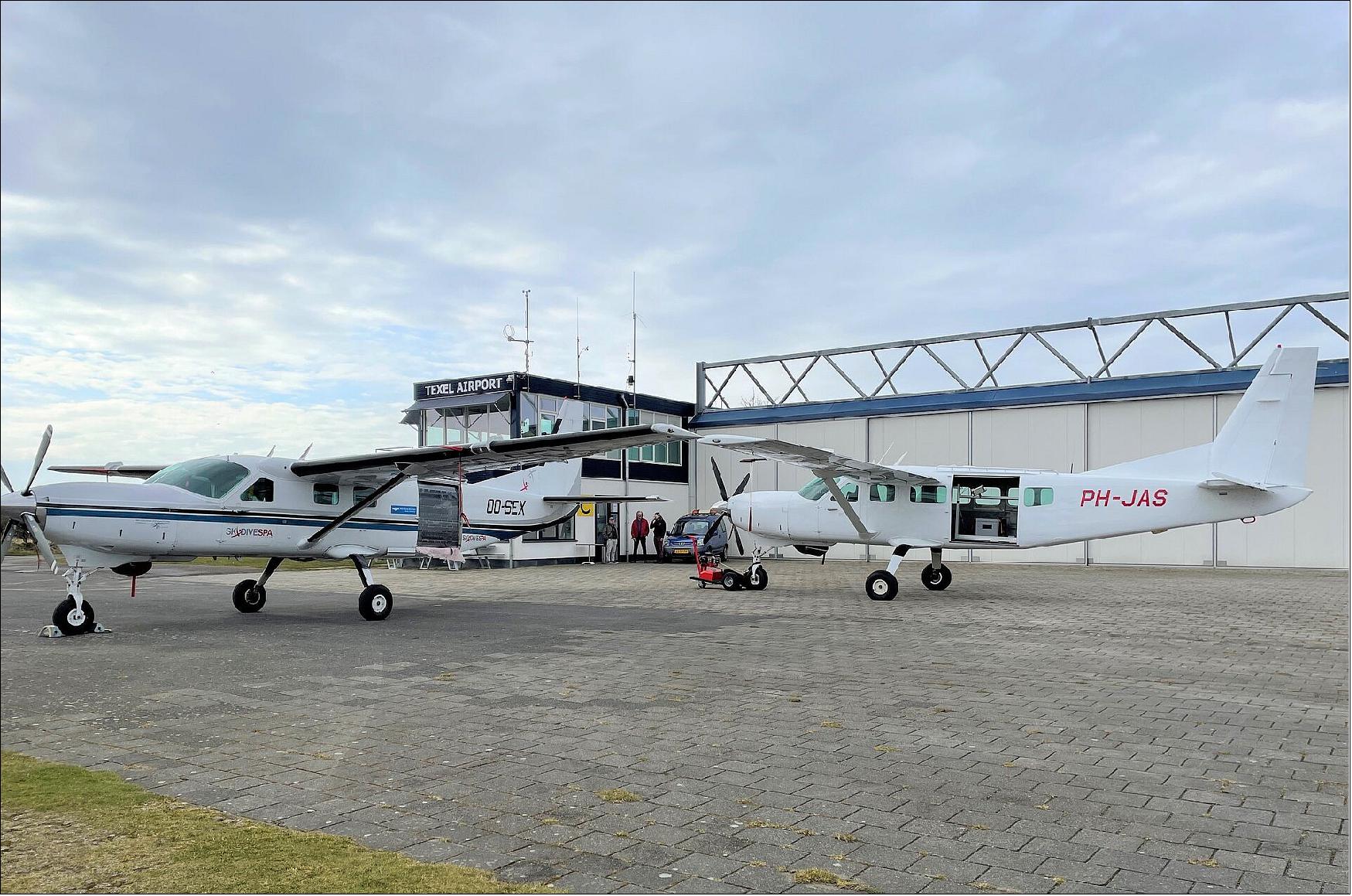

Figure 3: WaddenSAR campaign aircraft (Image credit: ESA–J. Kubanek)

- The Wadden Sea was chosen to observe because there are strong tidal currents and variable winds. Each aircraft carried a C-band synthetic aperture radar. To simulate the transmit-receive arrangement between Sentinel-1 and Harmony, one of the aircraft’s instruments could emit and receive radar signals to and from the sea surface, and one was a receive-only instrument.

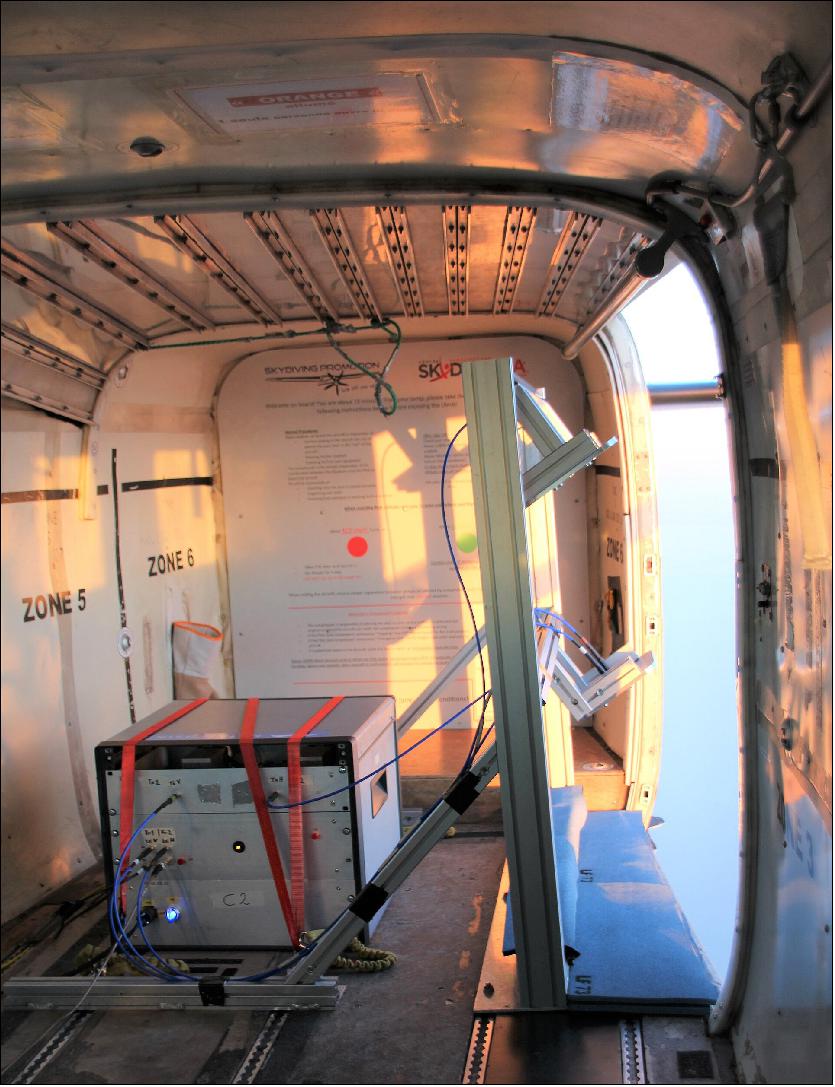

Figure 4: WaddenSAR campaign airborne instrument (Image credit: ESA–J. Kubanek)

- The campaign was carried out by MetaSensing Radar Solutions, with support from Deltares, the Royal Netherlands Institute for Sea Research and the Paracentrum Texel.

• February 2021: ESA chose Harmony, to move to the next phase, Phase-A, of development as the tenth Earth Explorer mission. Harmony is envisaged as a mission with two satellites that orbit in formation with one of the Copernicus Sentinel-1 satellites to address key scientific questions related to ocean, ice and land dynamics. 1)

- This step has now culminated into ESA’s Program Board for Earth Observation (PB-EO) accepting ESA’s proposal, based on the recommendation from the Advisory Committee for Earth Observation (ACEO) and its own evaluation that Harmony should be taken forward to the next study phase. This phase, Phase-A, includes further feasibility assessment after in-depth system definition, including the design of the satellite platform and instruments, flight operations, technology developments and how best to exploit the data.

- A plan for Harmony, development through to launch, is expected to be arranged by Autumn 2022.

- Another Phase-A candidate, Daedalus, was not selected for development due to the strict adherence to the cost constraints established by the PB-EO. Nevertheless, the ACEO commended both Daedalus and Hydroterra mission concepts for the exploratory nature of their observations and potentially ground-breaking science objectives. The ESA will perform some risk-reduction studies on both Daedalus and Hydroterra in order to further mature each concept.

• September 2018: Three Earth Explorer candidate missions entered a first feasibility study: Daedalus, Harmony (formerly called Stereoid) and Hydroterra (formerly called G-Class). Two years were spent scrutinising their scientific, technical and budgetary feasibility to be ESA’s tenth Earth Explorer mission.

Sensor Complement

Each Harmony satellite will carry a passive SAR (Synthetic Aperture Radar) instrument as its primary payload. These will capture the reflections of signals sent by Sentinel-1 to Earth. A multibeam thermal infrared camera will also be on board each satellite. These will measure the height and motion of clouds. Through the interaction between the three satellites, the deformation of Earth's surface in three dimensions will be measured and the speed of ocean currents will be determined with an accuracy of 0.2 m/s.

Figure 5: Harmony is intended to answer important scientific questions about changes to oceans, ice and land (Image credit: DLR)

Researchers at the DLR Microwaves and Radar Institute are part of the team that submitted the initial proposal for the mission. DLR's contributions focus on the conception of the Harmony mission and the radar system, the consolidation of user and radar system requirements, and the assessment of the overall system performance. At the same time, they are endeavouring to devise a new process for synchronisation between the radar systems of the Harmony satellites and Sentinel-1. In addition, the Institute is developing a complex software tool to calculate the performance of the radar systems and create simulated radar images. In the next step, algorithms will be used to generate three-dimensional deformation maps of the Earth's surface and calculate topographical changes at volcanoes. This will prove that the user requirements for the accuracy of measurements will be met.

References

1) ”ESA moves forward with Harmony,” ESA Applications, 23 February 2021, URL: https://www.esa.int/Applications/Observing_the_Earth/ESA_moves_forward_with_Harmony

2) ”A mission for Earth's future,” DLR, 1 March 2021, URL: https://www.dlr.de/content/en/articles/news/2021/01/20210301_a-mission-for-earth-s-future.html

3) “Harmony in the Wadden,” ESA Applications, 31 March 2022, URL: https://www.esa.int/Applications/Observing_the_Earth/FutureEO/Harmony_in_the_Wadden

4) “ESA selects Harmony as tenth Earth Explorer mission”, ESA Applications, 22 September 2022, URL: https://www.esa.int/Applications/Observing_the_Earth/FutureEO/ESA_selects_Harmony_as_tenth_Earth_Explorer_mission

5) “Ministers back ESA’s bold ambitions for space with record 17% rise”, 23 November 2022, URL: https://www.esa.int/About_Us/Corporate_news/Ministers_back_ESA_s_bold_ambitions_for_space_with_record_17_rise

The content of the EO Portal is based on Herbert J. Kramer’s book "Observation of the Earth and Its Environment: Survey of Missions and Sensors", as well as many other sources after the publication of the 4th edition in 2002. The content is now managed by the EO Portal Content Team. Comments and corrections to this article are always welcome for further updates (eoportal@symbios.space).
