Landsat-4 and 5

Jun 1, 2012







Cloud type, amount and cloud top temperature


Landsat is the pioneering land remote sensing satellite program, conceived by USGS (United States Geological Survey) and developed by the National Aeronautics and Space Administration (NASA) in the United States. Following on from experimental missions (Landsat-1, Landsat-2 and Landsat-3), Landsat-4 and Landsat-5 were the first operational Landsat missions launched in July 1982 and March 1984 respectively. The primary objective was to monitor Earth’s resources via multispectral, high spatial resolution images of solar radiation reflected from Earth’s surface. Landsat-4 was kept in orbit for standby housekeeping until it was decommissioned in June 2001, followed by the decommissioning of Landsat-5 in June 2013.

Quick facts


Mission typeEO
Mission statusMission complete
Launch date16 Jul 1982
End of life date05 Jun 2013
Measurement domainAtmosphere, Ocean, Land, Snow & Ice
Measurement categoryCloud type, amount and cloud top temperature, Ocean colour/biology, Multi-purpose imagery (ocean), Radiation budget, Multi-purpose imagery (land), Surface temperature (land), Vegetation, Albedo and reflectance, Landscape topography, Sea ice cover, edge and thickness, Snow cover, edge and depth
Measurement detailedOcean imagery and water leaving spectral radiance, Ocean chlorophyll concentration, Cloud cover, Cloud imagery, Land surface imagery, Fire temperature, Vegetation type, Fire fractional cover, Earth surface albedo, Short-wave Earth surface bi-directional reflectance, Leaf Area Index (LAI), Land cover, Land surface temperature, Land surface topography, Sea-ice cover, Snow cover, Normalized Differential Vegetation Index (NDVI), Iceberg fractional cover, Fraction of Absorbed PAR (FAPAR), Iceberg height, Glacier cover, Glacier topography, Sea-ice surface temperature, Long-wave Earth surface emissivity, Permafrost
InstrumentsTM, MSS (Landsat)
Instrument typeImaging multi-spectral radiometers (vis/IR)
CEOS EO HandbookSee Landsat-4 and 5 summary

Related Resources

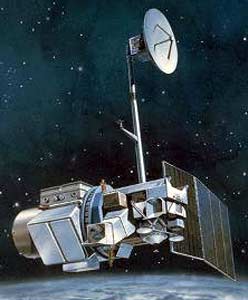

Landsat-4 Satellite (Image credit: USGS)



Mission Capabilities

Landsat-4 and Landsat-5 each carried an improved suite of sensors to their predecessors which included a Thematic Mapper (TM), Multispectral Scanner (MSS) and GPS receiver and processor Package (GPSPAC). Developed by Santa Barbara Research Center (SBRC), TM is a multispectral mechanically scanning optical imager that uses a whiskbroom technique. It images seven bands in the visible, infrared and thermal regions to be used in application fields such as global change research, agriculture, forestry, geology, resources management, water quality and oceanography. MSS assumed a secondary role onboard Landsat-4 and Landsat-5, acquiring high-resolution, multispectral data of the Earth’s surface in four spectral bands in the visible and near-infrared (VNIR) region. GPSAC onboard Landsat-4 represents the first satellite-to-satellite navigation systems in history, operating in two phases: one for experimental validation and the second for operational use. GPSAC onboard Landsat-4 malfunctioned soon after launch, however, the GPSAC onboard Landsat-5 was successfully launched for operational use.

Performance Specifications

Unlike Landsat-1, Landsat-2 and Landsat-3, TM data from Landsat-4 and Landsat-5 covered a wider range of applications than Landsat MSS images due to an increase in spectral bands and improved spatial resolution and hence served as the primary instrument. TM provided a spatial resolution of 30 m for bands in the visible and near-infrared (VNIR) region and 120 m for the thermal imaging band. It had a Field of View (FOV) of -7° to 7°, covering a swath width of 185 km. MSS had a lower spatial resolution of 80 m for the same swath width. GPSAC demonstrated a navigational accuracy of better than 50 m over 10 to 30 minute arcs on 88% of the revolutions, and has since been employed on many additional satellites. For technical reasons, MSS was turned off on Landsat-5 in August 1995.

Landsat-4 and Landsat-5 were placed into lower orbits than previous Landsat missions, undergoing a sun-synchronous near-circular orbit with an altitude of 705 km and inclination of 98.2°. Each underwent a repeat cycle of 16 days with a local equatorial crossing time between 0930 and 1000 on a descending node and a period of 98.9 minutes.

Space and Hardware Components

Built by General Electric Astro Space for NASA, a new spacecraft design was introduced for Landsat-4 and Landsat-5 based on the Multimission Modular Spacecraft (MMS) bus design. With a mass of 1407 kg, the three-axis stabilised spacecraft consisted of aluminium panels with graphite struts and a 4 m retractable boom. Electric power was provided by a single solar array with a 1-axis articulation mechanism, and a hydrazine propulsion system used for orbital maintenance.

Landsat-4 and Landsat-5 were each designed with a three-year nominal lifetime, however, each was extended significantly past this lifespan due to the failed launch of Landsat-6, despite experiencing numerous instrument and spacecraft malfunctions.

Spacecraft   Launch   Mission Status   Sensor Complement   References

Landsat-4 and Landsat-5


The Landsat spacecraft series evolved from an experimental program (LS-1 to LS-3) to an operational program (LS-4 and LS-5) as NASA developed and launched considerably improved spacecraft that were placed into lower orbits than the previous Landsat spacecraft and carried improved instrument suites. 1) 2)


A new spacecraft design (2nd generation) was introduced with LS-4 based on the MMS (Multimission Modular Spacecraft) bus design [first introduced by the SMM (Solar Maximum Mission) of NASA with a launch Feb. 14, 1980]. Both Landsat satellites were built by GE Astro Space, Fairchild (now Lockheed Martin Missiles & Space) for NASA. The spacecraft mass of LS-4 is 1407 kg (1,941 kg launch mass); LS-5 = 1407 kg (launch mass of 1.938 kg).

The flight segment consisted of two major systems:

• The instrument module, containing the instruments together with the mission unique subsystems, such as the solar array and drive, the TDRS antenna, the wide-band module, and the global positioning system (GPS)

• The multimission modular spacecraft that contained the modularized and standardized power, propulsion, attitude control, and communications and data handling subsystems. The flight segment was designed with 3 years nominal lifetime.

The spacecraft structure consists of aluminum panels with graphite struts. A hydrazine propulsion system is being used for orbit maintenance. Electric power of 1430 W (BOL) is provided by a single solar array with a 1-axis articulation mechanism. Two NiCd batteries provide 100 Ah total during the ecliptic orbit phase.

A retractable boom (4 m long) with 2 powered joints supports the articulated HGA (High Gain Antenna) which downlinks data via TDRS (Tracking and Data Relay System). The RF communications system uses S-, X-, L-, and Ku-bands. The S/C is 3-axis stabilized, zero momentum with control to 0.01º using reaction wheels.

S/C structure

Aluminum panels with graphite struts

S/C stabilization

3-axis stabilized, zero momentum with control of 0.01º, using reaction wheels

S/C power generation

- Single solar array with 1-axis articulation produces 1430 W (BOL)
- Two NiCd batteries provide 100 Ah total power

Orbit maintenance

Hydrazine propulsion system

S/C launch mass

- 1941 kg (LS-4)
- 1938 kg (LS-5)

Table 1: Overview of LS-4 and LS-5 spacecraft parameters
Figure 1: Illustration of the Landsat-4 and 5 spacecraft
Figure 1: Illustration of the Landsat-4 and 5 spacecraft



Landsat-4 was launched on a Delta 3925 vehicle (Thor Delta) from VAFB (Vandenberg Air Force Base), CA on July 16, 1982.


Landsat-5 was launched on a Delta 3925 vehicle from VAFB (Vandenberg Air Force Base), CA on March 1, 1984.


Landsat-4 and -5 were placed into sun-synchronous near-circular orbits with an altitude of 705 km, inclination of 98.2º, repeat cycle of 16 days. The local equatorial crossing time is between 9:30 and 10:00 hours on a descending node.
Note: This differed from the orbital altitude of LS-1 to LS-3 (about 910 km). However, the instrument swath width of MSS (heritage instrument) remained the same as before by increasing the FOV (Field of View) of the sensors from 11.56º to 14.92º.

Figure 2: Alternative view of the LS-4 and LS-5 spacecraft (image credit: NASA)
Figure 2: Alternative view of the LS-4 and LS-5 spacecraft (image credit: NASA)

While NASA was in charge of spacecraft and instrument development as well as the launch of the LS-4 and LS-5 satellites, management of the spacecraft operations was transferred from NASA to NOAA with Landsat 4. On October 1, 1982, NOAA assumed responsibility for Landsat data production and archiving activities at the Department of Interior's EROS Data Center. On January 31, 1983, NOAA also took over the MSS operation and maintenance of the Landsat spacecraft and ground system resources from NASA. The RBV operation was under NOAA as of Oct. 1, 1984.



Mission Status


Overall the mission lasted from mid-1982 until mid-2001 when the spacecraft was decommissioned.

• Landsat 4 began experiencing numerous spacecraft malfunctions which limited spacecraft functionality in its early mission life. The first of these occurred on July 27, 1982 when the high gain Ku-band antenna was commanded to deploy but failed to do so. Many attempts were subsequently made to drive the antenna free, and success was finally achieved on August 15.

• On October 29, 1982, the redundant central unit in the spacecraft CCU (Command and Control Unit) failed - the primary unit on Sept. 22, 1982, and the redundant on February 15, 1983. Intermittent power loss began in one of the four cables of the solar array on March 18, 1983. Since June 1983, the S/C had been operated at reduced power levels. This situation prompted the early launch of Landsat-5 to guarantee continued coverage.

Note: Within a year after launch, Landsat-4 lost the use of two of its solar panels and both of its direct downlink transmitters. So, the downlink of data was not possible until the TDRS (Tracking and Data Relay Satellite) system became operational: Landsat-4 could then transmit data to TDRS using its Ku-band transmitter and TDRS could then relay that information to its ground stations. 3)

• In 1987, after the Landsat-5 Ku-band transmitter failed and Landsat-5 was no longer able to downlink international data to the U.S. via the TDRSS relay, Landsat,4 used its functional Ku-band transmitter to downlink the acquired international data via the TDRSS. This continued until 1993, when this last remaining science data downlink capability failed on Landsat-4.

• Landsat-4 was kept in orbit for standby and for housekeeping telemetry command and tracking data (which it downlinked via a separate data path, the S-band) until it was decommissioned on June 1, 2001. Subsequently, Landsat-4 was placed into a disposal orbit to reduce collision risks with other resident space objects.



• July 7, 2017: Large powder avalanches can easily accelerate to 130 km/hour in a matter of seconds, and they do not usually last long. So it was a stroke of luck that on April 17, 1996, TM (Thematic Mapper) on Landsat-5 happened to capture this false-color image of an avalanche barreling down a steep flank of Kanjut Sar, a peak in the Karakorum Range in northern Pakistan. The image of Figure 3 combines infrared, red, and green wavelengths to make it easier to distinguish the avalanche. Snow appears red; bare rock or soil is cyan. Shadows are black. 4)

- he source of the avalanche appears to be a slope at roughly 6,500 meters elevation. As the avalanche gathered force, snow swept into a valley and tumbled nearly 750 meters onto Khurdopin Glacier.

- Khurdopin has a prominent band of debris (a medial moraine) that runs down its center. The moraine winds and loops in a distinctive way that suggests the glacier "surges" every few decades. Surging glaciers cycle through quiet periods, in which they store large amounts of ice and snow at high elevation, and then periods of rapid forward movement.

- Jakob Steiner of Utrecht University and the Mountain Hydrology group first noticed the avalanche while investigating Khurdopin's history of surging. By digging through satellite imagery, researchers have described surges in the 1970s and 1990s. Steiner and colleagues are tracking a newer, even faster surge that began in October 2016. They keep a particularly close watch on Khurdopin because its surges can dam the Vijerab River and lead to dangerous floods downstream.

- With a height of 7,760 m, Kanjut Sar is the 11th highest mountain in Pakistan and the 26th highest in the world. Though not frequently climbed, it is well-known for its avalanches. In a report published by the American Alpine Club, climber Toni Spring recounted a close call with an avalanche on the mountain in 1986. — "We had just set up Camp I at 5,700 m when we heard the sound of tons of wet snow sliding. We jumped aside to a safer spot. The avalanche swept away our camp, leaving us barefoot in the snow. Fortunately, we could dig out enough gear to descend, but it was difficult without outer boots."

Figure 3: Image of a large powder avalanche, acquired with TM on Landsat-5 on April 17, 1996 (image credit: NASA Earth Observatory, image by Jesse Allen, using Landsat data from the USGS, story by Adam Voiland)
Figure 3: Image of a large powder avalanche, acquired with TM on Landsat-5 on April 17, 1996 (image credit: NASA Earth Observatory, image by Jesse Allen, using Landsat data from the USGS, story by Adam Voiland)

Landsat 5 was officially "retired" when deorbiting and decommissioning began on January 15, 2013. Four commissioning phases are planned: 5)

- Phase I – Initial 705Km orbit lowering – complete

- Phase 2 – Lowering perigee to minimize time of reentry (planned completion no later than June 30, 2013)

- Phase 3 – Render the spacecraft passive

- Phase 4 – Closeout the MOC (Mission Operations Center) - complete before the end of 2013.

• March 2012: Landsat 5's 28th birthday (launch March 1, 1984) this year was marked by a suspension in operations while the USGS Flight Operations Team "continues to investigate options for the resumption of imaging." Landsat 5's operations were originally halted in November 2011 due to a rapidly degrading electronic component. It is a daunting task of attempting to recover operations of malfunctioning, three-decade-old components in an unmanned satellite orbiting Earth. 6)

• January 17, 2012: With the Landsat-5 Earth observation satellite failing due to a rapidly degrading electronic component, the USGS is exploring ways to alleviate a data gap if both Landsat-5 and -7 fail prior to the planned launch of Landsat-8—known as the Landsat Data Continuity Mission—in 2013. 7)

Landsat-5 currently is undergoing an initial 90-day image-suspension period that will end in mid-February; this is allowing the satellite's flight operations team to explore options for restoring Landsat 5 operations.

• In Nov. 2011, the 27-year-old Landsat-5 spacecraft stopped acquiring imagery due to a rapidly degrading electronic component. For several months, the Landsat flight operations team has been closely tracking the fluctuating performance of an amplifier essential for transmitting land-surface images from the Landsat 5 satellite to ground receiving stations in the U.S. and around the world. Over the past 10 days, problems with the amplifier have led to drastically reduced image download capabilities, a sign of impending failure. 8)

• The Landsat-5 mission is operational in 2011. 9)

• On December 2, 2010, launched its new "Google Earth Engine" at the International Climate Change Conference in Cancun, Mexico. Google Earth Engine is a new technology platform that puts an unprecedented amount of satellite imagery and data—current and historical—online for the first time. The Google Earth Engine mainly uses Landsat scenes to enable massive scale scientific analysis. 10)

• Starting with Jan. 10, 2010, Landsat 5 has continued to downlink data successfully. 11) 12) 13)

• On Jan. 7, 2010, the FOT (Flight Operations Team) of USGS successfully conducted a test to collect data from LS-5. In late Dec. 2009, FOT had exercised the only remaining TWTA (Traveling Wave Tube Amplifier) on the spacecraft. The remaining TWTA was in fact the primary TWTA that was in operation when Landsat 5 was launched in 1984. After several issues in late 1986 and 1987, the primary TWTA was turned off and the secondary, or redundant, TWTA had been used since. It was this redundant TWTA that failed on December 18, 2009. The TWTA that operated successfully after the switch over is the primary TWTA, the one that was disabled in 1987. Because of the extensive knowledge that the USGS Flight Operations Team has gained in sustaining the redundant TWTA for such a long time, they were able to apply that information to the primary TWTA for its first successful transmission in over 22 years. 14)

• Landsat-5 experienced an anomaly on Aug. 13, 2009. But LS-5 operations continued on the same day. The TM instrument was turned on on Aug. 14, 2009 and provided data.

• Landsat-5 is "operational" as of 2009 (LS-5 completed its 25th year of operational service life in early March 2009!). LS-5 is being used to collect data over the United States and for selected international ground stations. The expected end-of-life of the LS-5 mission, based on fuel reserves, is projected for 2010. 15) 16) 17)

Figure 4: Overview of LS-5 component failures/recoveries over its life until Jan. 2010 (image credit: USGS, Ref. 11)
Figure 4: Overview of LS-5 component failures/recoveries over its life until Jan. 2010 (image credit: USGS, Ref. 11)

• On Oct. 6, 2007, the Landsat 5 Flight Operations Team (FOT) noted that battery #2 was automatically taken off-line the previous evening. The satellite continues to operate on battery #3, but is not collecting imagery. In this configuration, battery #3 appears to be operating normally and maintaining an adequate charge to operate the mission to required health and safety standards. Also, the FOT has uplinked a new command load that ensures health and safety of the spacecraft operating with only one battery. It is expected that the spacecraft can operate indefinitely in this configuration (barring any further complications).

• In 1987, the LS-5 TDRS transmitter (Ku-band) failed. This failure made downlinking data acquired outside of the US data acquisition circle (i.e., range of US ground receiving antennas) impossible; Landsat-5 has no on-board data recorder to record acquired data for later downlink. 18)

• On Nov. 26, 2005, the back-up solar array drive on LS-5 began exhibiting "unusual behavior" according to USGS (as a precaution, imaging operations were suspended until the problem was identified and potential solutions were evaluated and tested). By the end of January 2006, Landsat-5 was back in operation. USGS and NASA engineers were able to make adjustments to operating procedures for the solar array drive mechanism that now allows the solar array to provide enough power for the mission to resume normal operations.
The primary solar array drive of LS-5 had failed under similar circumstances in January 2005 - and the secondary drive was engaged. It is feasible that after 22 years of operations, the various lubricants are depleted or breaking down. Other mechanical issues such as the clutch slipping and wear on the teeth of the harmonic drive could also cause the array to stop functioning properly.

• The LS-5 TM is operating "nominally", although it has experienced degradation over the years, particularly in the scan mirror bumpers and the internal calibration lamps. The bumpers are worn to the point that synchronization cannot be maintained between the internal shutter and the scan mirror in the primary scan mirror operating mode. The backup "bumper mode" was initiated in 2002. Each of the three internal calibration lamps has degraded differently over the years, such that the original calibration scheme for the lamps no longer works effectively. 19) 20)

• USGS is reporting in January 2006, that Landsat-5 is back in operation. USGS and NASA engineers were able to make adjustments to operating procedures for the solar array drive mechanism that now allows the solar array to provide enough power for the mission to resume normal operations.

• With Landsat-4's 11 year and Landsat-5's 20+ year data record, there is a need to understand the historical behavior of the instruments in order to verify the scientific integrity of the archive and processed products. Performance indicators of the Landsat-4 and -5 thermal bands have recently been extracted from a processing system database allowing for a more complete study of thermal band characteristics and calibration than was previously possible. 21)



Sensor Complement

TM (Thematic Mapper)

TM is a whiskbroom instrument designed and built by SBRC (Santa Barbara Research Center) of Hughes Aircraft Company in Goleta, CA; PI: John L. Barker. TM is being regarded as a second generation imager for monitoring Earth's resources with considerably improved spectral and spatial resolutions over those of the MSS instrument. TM is being flown on LS-4 and on LS-5.

TM is a multispectral mechanically scanning optical imager operating in the visible and infrared regions of the EMS (Electromagnetic Spectrum). The instrument consists of the following elements or subsystems:

• SMA (Scan Mirror Assembly)

• Telescope

• SLC (Scan Line Corrector)

• Primary focal plane detector array

• Relay optics

• Cooled focal plane detector array

• Internal calibrator.

The telescope is of the type Ritchey-Chretien with 40.6 cm in diameter [primary mirror clear aperture diameter = 41.15 cm, secondary mirror baffle diameter = 15.7 cm, telescope clear aperture = 1056 cm2, effective focal length = 243.8 cm (f/6)].

The scan line corrector compensates for the forward motion of the S/C, allowing the scan mirror to produce usable data (parallel scans) in both scan directions. The bidirectional scan and the use of detector arrays for each spectral band provides scan efficiency. Scan period = 7 Hz cross-track; FOV = ±7.2º (swath width = 185 km); IFOV = 42.5 mrad; overall instrument size of 2.0 m x 1.1 m x 0.7 m with a mass = 258 kg; power = 385 W (peak); quantization = 8 bit. Design life = 2 years (with a goal 3 years). 22)

Whiskbroom bi-directional scanning method: The TM detector array features a total of 96 parallel line arrays (16 each for the seven spectral bands), oriented in the along-track direction. This new arrangement technology provides a parallel coverage of 480 m along-track in one scan sweep (cross-track direction). The wide along-track coverage permits sufficient integration time for all cells in each scan sweep.

Figure 5: Illustration of the Thematic Mapper (image credit: NASA)
Figure 5: Illustration of the Thematic Mapper (image credit: NASA)

Instrument inflight calibration is done at the start and end of each scan by using solar and lamp-based approaches (three lamps) for the solar reflective bands. Onboard blackbodies are used to calibrate the thermal bands. TM instruments are operational since 1982 (first flight on LS-4). 23) 24) 25)

Figure 6: Functional block diagram of the TM instrument (image credit: NASA)
Figure 6: Functional block diagram of the TM instrument (image credit: NASA)

Background: The Thematic Mapper got its name from the intended "thematic" applications of its data. Its images were used to produce maps tailored to different Earth-observation themes, such as agriculture, hydrology, geology, etc. In addition, the TM bands were chosen on the basis of a comprehensive analysis of spectral reflection features for a variety of vegetation types and surface minerals. Spectral classification accuracy was a key determinant for selecting the specific band edges and bandwidths. In this context, band number 7 (2.08 - 2.35 µm) was added to the TM specifications much later in the design process then the other bands. It was an extra for the geology community, therefore it required contract modifications.

Applications: Landsat TM data can be used in fields such as: global change research, agriculture, forestry, geology, resources management, geography, water quality, and oceanography.

▪ Band 1: Coastal water mapping, soil/vegetation differentiation, deciduous/coniferous differentiation, chlorophyll absorption

▪ Band 2: Green reflectance, peak of healthy vegetation, plant vigor

▪ Band 3: Chlorophyll absorption, plant type discrimination

▪ Band 4: Biomass surveys, water body delineation

▪ Band 5: Vegetation moisture measurement, snow/cloud differentiation

▪ Band 6: Plant heat stress, thermal mapping, soil mapping

▪ Band 7: Hydrothermal mapping, geology

Band No.

Bandwidth (µm)


Resolution (m)

SNR (average)


0.45-0.52 (VIS, blue)

SiPD (16)




0.52-0.60 (VIS, green)

SiPD (16)




0.63-0.69 (VIS, red)

SiPD (16)




0.76-0.90 (NIR)

SiPD (16)




1.55-1.75 (SWIR)

InSb (16)




2.08-2.35 (SWIR)

InSb (16)




10.4-12.5 (TIR)

HgCdTe (4)



Table 2: TM parameter definition (LS-4/5)

TM data image size: 185 x 172 km; 5760 lines x 6928 pixels. Transmission: frequency = 8215.5 MHz (X-band); data rate = 84.9 Mbit/s (246 MByte per scene). There is no capability for onboard recording of TM data. Data transmission from the S/C to the ground is in realtime via a network of licensed X-band stations. An alternate data transmission link is via TDRS (Ku-band) to GSFC (Note: LS missions with TDRS support do not provide an onboard recorder).

Figure 7: Configuration of the Thematic Mapper (image credit: NASA)
Figure 7: Configuration of the Thematic Mapper (image credit: NASA)

TM calibration: The TM thermal calibration system consists of a single onboard cavity blackbody and a black, highly emissive shutter. As the shutter sweeps onto the optical axis, a toroidal mirror on the shutter reflects the radiation from the blackbody onto the optics and through to the cooled focal place (Figure 8). The non-mirror part of the shutter is coated with a high emissivity paint and is not temperature controlled. Thermistors are located on the shutter and blackbody and their outputs are included in the downlinked housekeeping data. The shutter oscillates in synchronization with the scan mirror and crosses the optical axis at the end of each scan. 26) 27)

Figure 8: Optical layout of the TM instrument (image credit: NASA)
Figure 8: Optical layout of the TM instrument (image credit: NASA)

Legend of Figure 8: the calibration wand, or shutter, swings across the optical path, allowing the focal plane to see both the cold target (ambient black shutter) and the hot target (reflected energy from the off-axis blackbody).


MSS (Multispectral Scanner)

MSS PI: V. V. Salomonson. See instrument description under LS-1 to LS-3. However, with a new and considerably advanced TM sensor on the same platform, the MSS instrument was able to assume only a secondary observation role on the LS-4 and LS-5 satellite missions. For technical reasons, the MSS instrument was turned off on LS-5 in August 1995.

Spectral bands

0.5-0.6 µm (green): mapping coastal features in sediment-laden water
0.6-0.7 µm (red): mapping roads and urban areas
0.7-0.8 µm (red to near IR): vegetation studies
0.8-1.1 µm (near IR): vegetation studies and mapping land/water boundaries

Spatial resolution

80 m

Swath width

185 km

Table 3: Some MSS parameters

Comparing TM data with MSS data resulted in the following conclusions:

• TM images cover a wider range of applications than Landsat MSS images, due to more spectral bands and improved spatial resolution

• MSS images are better for large area analyses (geologic mapping)

• More specific mapping (detailed land cover) is difficult on MSS because many pixels are "mixed" pixels

• TM's decreased IFOV produces less mixed pixels

• Incorporation of mid-IR bands (5 & 7) has increased the vegetation discrimination of TM data.

• Due to the line scanning system (one-dimensional relief displacement), Landsat images can be viewed in stereo only in areas of sidelap on adjacent orbit passes.

Figure 9: Cutaway view of the multispectral scanner (image credit: NASA)
Figure 9: Cutaway view of the multispectral scanner (image credit: NASA)


GPSPAC (GPS receiver and processor Package)

The DCS systems of LS-1 to LS-3 missions were replaced by experimental GPS receiver systems (DoD program) on LS-4 and on LS-5. GPSPAC on LS-4 represents in fact the first spaceborne GPS receiver onboard operation in history (a satellite-to-satellite navigation system). The GPSPAC on LS-4 was operated in two phases. The first phase (approximately 90 days) was an experimental one to validate and calibrate the position and timing information provided by GPSPAC. The second phase called for operational use of the GPS data by LS-4. Note: GPSPAC malfunctioned soon after launch of LS-4. - Three more GPSPAC units were successfully launched: one on LS-5 in March 1984 and two on DoD host vehicle satellites in 1983 and 1984. 28) 29) 30) 31)

GPSPAC (designed at JHU/APL, NASA as co-sponsor, built by Magnavox) is an integrated GPS receiver/processor assembly (R/PA), whose tracking data is used for spacecraft time system synchronization and for post-event (on-ground) orbit determination.

GPSPAC on LS-4 has the distinction to be the first spaceborne GPS receiver in history. Despite the sparse GPS satellite constellation in orbit (in the early mission phase of LS-4 and -5), GPSPAC demonstrated navigational accuracy of better than 50 m over 10- to 30-minute arcs on 88% of the revolutions. Since those early days, many GPS receivers have been installed on all types of satellites. 32)


1) V. V. Salomonson, H. Mannheimer, "An overview of the evolution of Landsat-4," Proceedings of the eighth Pecora Symposium, Sioux Falls, SD, Oct. 4-7, 1983, (A84-49131 24-43), conference topic: `Satellite land remote sensing advancements for the eighties,'

2) Aram M. Mika, "Three Decades of Landsat Instruments," PE&RS (Photogrammetric Engineering & Remote Sensing), Vol. 63, No. 7, July 1997, pp. 839-852


4) "A Stroke of Luck," NASA Earth Observatory, July 7, 2017, URL:

5) Tom Holm, "Landsat: Building a Future on 40 Years of Success - Status: Landsat 5," 12th Annual JACIE (Joint Agency Commercial Imagery Evaluation) Workshop , St. Louis, MO, USA, April 16-18, 2013, URL:

6) Katrina Laygo, "Veteran Landsat 5 Mission Suspended," earthzine, March 21, 2012, URL:

7) Randy Showstack, "Contingency Plans Set for Landsat 5 and 7," EOS, Vol. 93, No 3, Jan. 17, 2012, URL:

8) "Landsat 5 Mission in Jeopardy," USGS, Nov. 18, 2011, URL:

9) Kristi Kline, Rachel Headley, "Landsat Project StatusLandsat," Proceedings of the Landsat Science Team Meeting, Mesa, AZ, USA, March 1-3, 2011, URL:

10) "Introducing Google Earth Engine," Dec. 2, 2010, URL:

11) Thomas Kalvelage, "Landsat Project Status, Landsat Science Team Meeting," Jan. 19-21, 2010, Mountain View, CA, USA, URL:


13) "Presentations of Landsat Science Team Meeting," January 19-21, 2010, Mountain View, CA, URL:


15) "Earth-Observing Landsat 5 Turns 25," Space Mart, March 3, 2009, URL:

16) Information was provided by Ronald E. Beck of USGS

17) Kristi Kline, "Landsat Project Status - Landsat-5 Status," LandSat Science Team Meeting, Reston, Va, USA, July 15, 2008, URL:


19) B. L. Markham, D. L. Williams, J. R. Irons, "Landsat Sensor Performance: History and Current Status," IEEE Transactions on Geoscience and Remote sensing, Vol. 42, No 12, Dec. 2004, pp. 2691-2694

20) J. C. Storey, M. J. Choate, "Landsat-5 Bumper-Mode Geometric Correction," IEEE Transactions on Geoscience and Remote sensing, Vol. 42, No 12, Dec. 2004, pp.2695-2703

21) J. A. Barsi, G. Chander, B. L. Markham, N. Higgs, "Landsat-4 and Landsat-5 Thematic Mapper Band 6 Historical Performance and Calibration," SPIE Conference on Optics and Photonics 2005, San Diego, CA, USA, July 31-Aug. 4, 2005, Vol. 5882, doi: 10.1117/12.619992

22) L. E. Blanchard, O. Weinstein, "Design challenges of the thematic mapper," IEEE Transactions on Geoscience and Remote Sensing, Vol. GE-18, Apr. 1980, pp. 146-160

23) "Landsat-4 Data Users Handbook," USGS/NOAA, 1984

24) P. N. Slater, "Remote Sensing Optics and Optical Systems," Addison-Wesley, Reading, MA, 1980

25) J. L. Engel, "The Thematic Mapper - Instrument overview and preliminary on-orbit results," Proceedings of the Ninth Annual Meeting, San Diego, CA, August 23-25, 1983 (A85-22673 09-35). Bellingham, WA, SPIE - The International Society for Optical Engineering, 1983, p. 75-84

26) K. J. Thome, B. L. Markham, J. L. Barker, P. Slater, "Radiometric Calibration of Landsat," Photogrammetric Engineering and Remote Sensing, Vol. 63, pp 853-858, 1997

27) Brian L. Markham, Julia A. Barsi, "Revised Landsat-5 Thematic Mapper Radiometric Calibration," IEEE Geoscience and Remote Sensing Letters, Vol. 4, No 3, July 2007, pp. 490-494

28) E. J. Hoffman, W. P. Birmingham, "GPSPAC: A Spaceborne GPS Navigation Set," Proceedings of IEEE PLANS (Position Location and Navigation Symposium) 1978, pp. 13-20, November 1978

29) W. P. Birmingham, B. L. Miller, W. L. Stein, "Experimental Results of Using the GPS for Landsat 4 Onboard Navigation," Navigation, The Journal of the Institute of Navigation, Vol. 30, No. 3, pp. 244-251, Fall 1983

30) H. Heuberger, "Performance of the GPS Package on LANDSAT-5," IEEE Position Location and Navigation Symposium (PLANS), San Diego, CA,. 1984

31) D. A. Korenstein, "Potential GPS user architecture for the NASA space station based on Landsat 4/5 experience," Proceedings of the Satellite Division First Technical Meeting, The Institute of Navigation, Colorado Springs, Colorado, U.S.A., Sept.. 21-25, 1987, pp. 171-175.

32) B. T. Fang, E. Seifert, "An evaluation of Global Positioning System data for Landsat-4 orbit determination," AIAA Aerospace Sciences Meeting, 23rd, Reno, NV, Jan. 14-17, 1985. 9 p.

The information compiled and edited in this article was provided by Herbert J. Kramer from his documentation of: "Observation of the Earth and Its Environment: Survey of Missions and Sensors" (Springer Verlag) as well as many other sources after the publication of the 4th edition in 2002. - Comments and corrections to this article are always welcome for further updates (
